Making a Hamster Riser Forend

I'm sucker for making accessories for my rifles.  I've poured over the old catalogs from Anschutz and Feinwerkbau admiring all the various items that plug into the forend rails on their precision match rifles.  Hand stops, riser plates, palm rests, sling attachments...  I was always fascinated by the purpose driven aspect of the components.  Over the last few years, many field target shooters have embraced a riser plate accessory that is mounted to the underside of the forend to provide some additional height.  The extra height allows you an option to find a more comfortable position with your off hand to steady the shot especially on elevated shots or on rifles with shallow forends.  I'm not sure where the term "hamster" came from, but it seems to have stuck.  Maybe it has something to do with the size.

Anyway, with my interest piqued to add yet another accessory to my rail compatible quiver, I mocked one up a couple months ago out of a chunk of cherry and the bottom half of a rather tall Picatinny scope ring.  The ring clamped to a section of Picatinny rail that was installed in the forend rail.  I didn't expect much, but it actually was pretty nice for standing shots with the QB .25 cal rifle.

Looked around the basement and came up with what I hoped would be a cleaner and more fitting design for the QB.


























This is the remainder of some UHMW PE plastic from an adjustable butt plate project.  It's 1/2" thick, about 2" wide and 5-1/2" long.






















Into the milling machine and squared it up.













































Used a corner rounding end mill.  It's used to radius the edges.




























I just eyeballed the cuts and tried to make it look halfway decent.




























As I'm writing this up after finishing the project,  I realize now that I should've chamfered the other side, too.  Ahhhh... hindsight.



























Found the center of the plate and through drilled.



























Had concerns about the fasteners pulling through and/or the material exhibiting "creep" as the bolt heads slowly dig into the plastic.   Hopefully some screw cups to support the fastener heads and spread out the load over more surface area will help.  Counterbored the hole with a 5/8" end mill.




























This is easy.  With the machine stopped, I bring the cutter down until it just touches the work, then zero the readout.  I bored the hole until it was 0.300" deep.






















Cranked the milling table over and cut the second counterbore to the same 0.300" readout depth.  Set up side note:  I'm still centered on the workpiece because the vise is lined up to the table axis.
























Through drilled the second hole.




























The plate is just about done.





















The only way I've found to get a halfway acceptable finish on UHMW has been from bead blasting.  Ran over to work and threw it in the blast cabinet.























In a few minutes I had a uniform matte finish.























Some 5/8" diameter aluminum will be used for the screw cups.























Faced.





















Spotted.






















Another side note:  Spotting drills are designed to be stiff and not deflect when making the small starting point for a traditional drill bit.



















































Clearance drilled for the 5mm bolt.

























Counterbored for the head of the 5mm fastener.  Believe I used a 5/16" end mill.























Used the bolt itself as a gage.  Need to cut this a bit deeper to completely recess the head.




























After deepening the counterbore, I parted it off at about .320" in length.




























Uno.



























Dos.



























I faced them to .301" in length and pressed them into the riser block.




























Since the barrel on the QB was sleeved in carbon fiber, carbon fiber pillars will continue the theme.




























Cut and faced two pieces.


















There was some measurement/math involved in cutting the carbon posts to the correct length that allowed for secure mounting--but not running the bolts completely though the nuts chewing into the bottom of the rail.

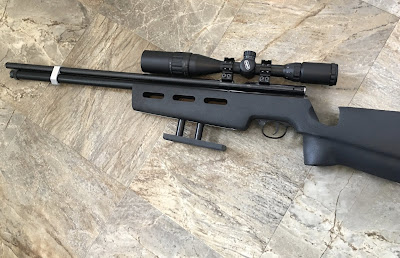

Mounted up the the QB.  This height/rise just allows me to get my off hand position on the forend.   The hamster is there if I want some additional height.












































Think I'll chamfer the top side of the plate and throw it back in the blast cabinet.   Softening those edges will certainly make it more comfortable to use.


More soon.
